Auto Transport

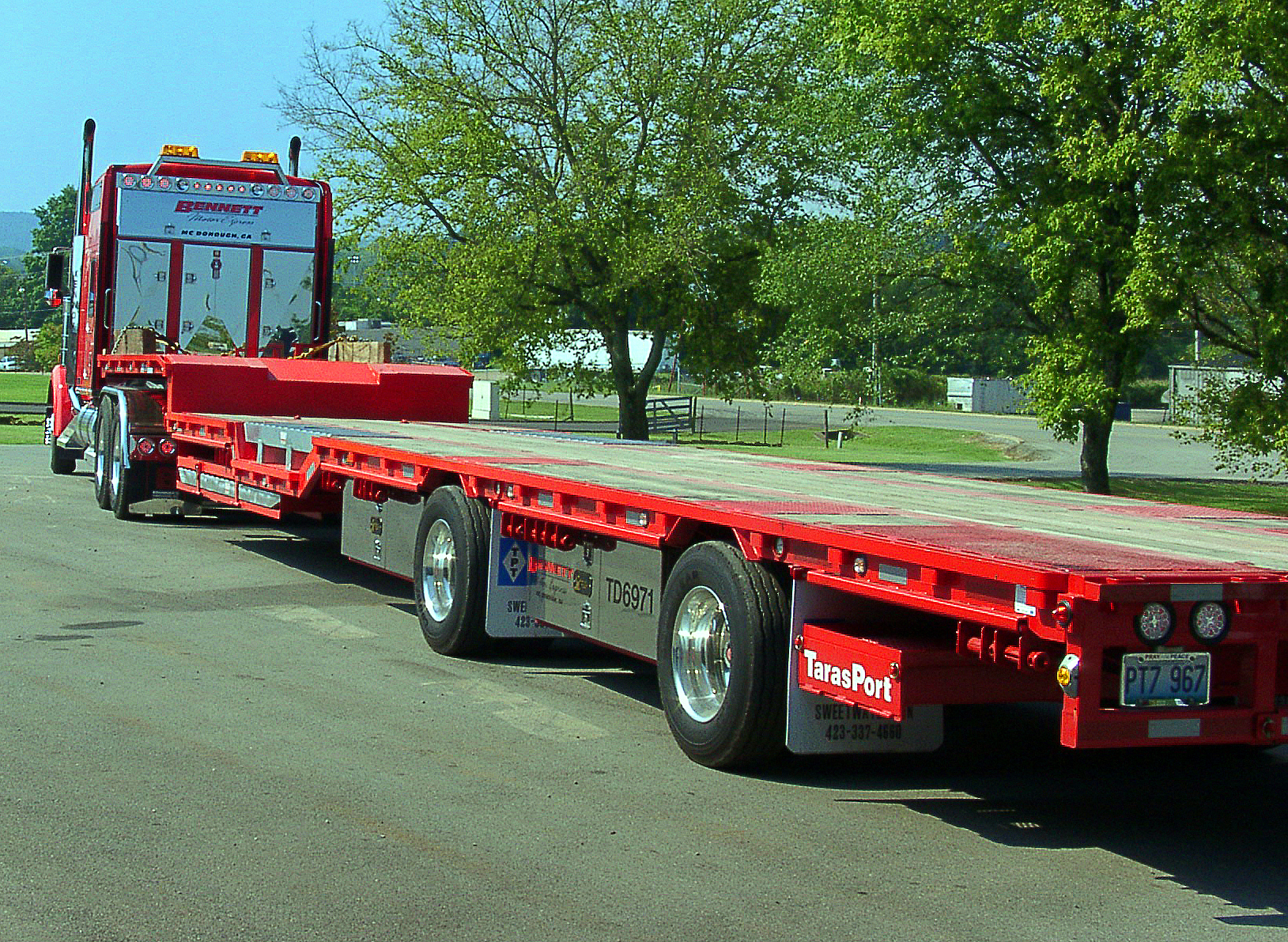

Drop Deck: 48′ x 102″

Typical Specifications

  • Two 22,500 lb. axles on 10′ spread
  • 16 1/2″ x 7″ ABS air brakes
  • Outboard 10 bolt hub and drum
  • 255/70R 22.5 16 ply tires
  • 22.5 hub piloted wheels
  • Air ride suspension
  • Park brake both axles
  • Cab controlled rear axle air dump valve
  • Two 2-speed landing legs
  • Spare tire mount
  • Anti-sail mud flaps (front and rear axle)
  • DOT bumper
  • 1 1/8″ S/L apitong flooring
  • Stake pockets on 24″ centers
  • Pipe spacers between stake pockets
  • 5/16″ x 2″ rub rail
  • Crossmembers on 16″ centers
  • Sealed wiring harness
  • Sealed beam lighting
  • Acid washed with rust inhibitor
  • Prime coated completely
  • Two coats polyurethane

Suggested Options

14' x 18'' Aluminum Ramps
alum-rampHeavy duty aluminum rear ramps have their own storage compartment. These ramps are available in 6,000#, 8,000# and 12,000# axle capacities.  Different lengths available as well.
9' Floor Recessed Ramps
recessed-rampNothing can be easier than using these front ramps. When not in use they form part of the lower deck but when they are needed the spring assists allows them to be lifted into place with a single hand.
3' x 23'' Rear Deck Extenders
rear-extenderRear deck extenders give you that additional carrying space when you need it. Fully extended (tail lamps slide out with extender) to 3′ the pair has a 6000# capacity. Adjustment positions are on 1′ centers.
3' x 23'' Front Extenders

front-extenderFront or rear deck extenders (tail lamps slide out with rear) allow extra carrying space for long wheelbase vehicles. Fully extended to 3′ x 23″ the pair has a 6000# capacity. Adjustment positions are on 1′ centers.

Ball Stands and Tread Plate
ballstandCenter track with ball stands and tread plate.

Hot Shot Drop Deck: 48′ x 8′ x 40″

Typical Specifications

  • Two 22,500 lb. axles on 10′ spread
  • 16 1/2″ x 7″ ABS air brakes
  • Outboard 10 bolt hub and drum
  • 255/70R 22.5 16 ply tires
  • 22.5 hub piloted wheels
  • Cab controlled rear axle air dump valve
  • Air ride suspension
  • 18″ kingpin setting
  • 8′ upper deck
  • 40′ lower deck with 40″ deck height
  • Two 2-speed landing legs
  • Spare tire mount
  • 1 1/2″ pressure treated flooring
  • 5/16″ x 2″ rub rail
  • Anti-sail mud flaps (front and rear axle)
  • DOT bumper
  • Stake pockets on 24″ centers
  • Pipe spacers between stake pockets
  • 5/16″ x 2″ rub rail
  • Crossmembers on 16″ centers
  • Sealed wiring harness
  • Sealed beam lighting
  • Acid washed with rust inhibitor
  • Prime coated completely
  • Two coats polyurethane

Suggested Options

  • Front and Rear Extenders
  • Front Floor Recessed Ramps
  • Aluminum Rear Ramps With Slide-in Compartments

Boat Carrier

Typical Specifications

  • Two 22,500 lb. axles on 51″ centers
  • 12 1/4″ x 7 1/2″ ABS air brakes
  • Outboard 8-bolt hub and drum
  • 215/75R 17.5 16 ply tires
  • 17.5 X 6.75 hub piloted wheels
  • Air ride suspension
  • 7′ 8″ upper deck with 14″ taper to lower deck
  • 41′ 2″ lower deck with 20″ deck height
  • 12′ 6″ raised deck over tandem w/26″ deck height
  • 8″ ground clearance
  • Two 2 1/2″ low profile landing legs
  • I-beam construction
  • Carpeted main beams
  • 24′ expanded metal bottom storage area
  • 3″ X 12″ erector set pockets on 24″ centers
  • Three side rail pipe spools between each pocket
  • 12″ channel side rail
  • 1/4″ x 12″ rub rail
  • 12 ga. removable fenders
  • 3′ full width rear extender
  • Anti-sail mud flaps
  • Sealed wiring harness
  • Sealed beam lighting
  • Acid washed with rust inhibitor
  • Prime coated completely
  • Two coats polyurethane

Lightweight: 48′ x 8′ Straight Deck

Suggested Options

3' x 23'' Rear Deck Extenders

rear-extenderRear deck extenders give you that additional carrying space when you need it. Fully extended (tail lamps slide out with extender) to 3′ the pair has a 6000# capacity. Adjustment positions are on 1′ centers.

14' x 18'' Aluminum Ramps

alum-rampHeavy duty aluminum rear ramps have their own storage compartment. These ramps are available in 6,000#, 8,000# and 12,000# axle capacities.  Different lengths available as well.

Tool Box
Offers plenty of storage and convenient double doors opening front and back for easy entrance. The keyed locks have flip over protectors to keep out dirt and grime. Can be built to custom size.

Typical Specifications

  • Two 10,000 lb axles on 48 1/2″ centers
  • Vacuum/ Hydraulic disc brakes
  • 8-bolt hub and drum
  • 7.50-16″ 10-ply tires
  • 16″ kingpin setting
  • Slipper spring suspension
  • 38″ plate height
  • 48′ platform with 42″ deck height at tandem
  • Two drop leg jacks
  • Spare tire mount
  • One 60″ aluminum tool box
  • 3′ x 18″ rear extenders
  • 14′ aluminum rear ramps with slide-in compartment
  • 5/4 pressure treated flooring
  • Stake pockets on 24″ centers
  • Pipe spacers between stake pockets
  • 1/4″ x 2″ rub rail
  • DOT bumper
  • Anti-sail mud flaps
  • Sealed wiring harness
  • Sealed beam lighting
  • Acid washed with rust inhibitor
  • Prime coated completely
  • Two coats polyurethane/smoke gray or black
  • Conspicuity tape

Car/Golf Cart Carrier

Typical Specifications

  • Two 22,500 lb. axles on 38″ centers
  • 12 1/4″ x 7 1/2″ ABS air brakes
  • Outboard 8-bolt hub and drum
  • 215/75R 17.5 16 ply tires
  • 17.5 x 6.75 hub piloted wheels
  • Cab controlled over ride (increases ground clearance by 5″)
  • Air ride suspension
  • Two low profile landing legs
  • 7′ aluminum 3,000 lb. axle capacity loading ramps with compartment
  • 12 volt hydraulic pump with four 12 volt batteries
  • One 48″ powder coated tool box
  • 10 gallon hydraulic reservoir with filter
  • Four 3-position cylinder controls
  • Expanded metal runners
  • Anti-sail mud flaps
  • Sealed wiring harness
  • Sealed beam lighting
  • Acid washed with rust inhibitor
  • Prime coated completely
  • Two coats polyurethane

Hydraulic Front Vehicle Lift: 50′ X 102”

Suggested Options

Hydraulic Front Vehicle Lift

hydraulic-front-liftThe hydraulic system is self-contained with its own 12v battery and operates with a simple up and down remote control. A single storage box in the trailer’s chassis keeps the entire unit out of sight and out of the way until you need it.

14' x 18'' Aluminum Ramps
alum-rampHeavy duty aluminum rear ramps have their own storage compartment. These ramps are available in 6,000#, 8,000# and 12,000# axle capacities.  Different lengths available as well.
9' Floor Recessed Ramps
recessed-rampNothing can be easier than using these front ramps. When not in use they form part of the lower deck but when they are needed the spring assists allows them to be lifted into place with a single hand.
3' x 23'' Extenders

front-extenderFront or rear deck extenders (tail lamps slide out with rear) allow extra carrying space for long wheelbase vehicles. Fully extended to 3′ x 23″ the pair has a 6000# capacity. Adjustment positions are on 1′ centers.

Typical Specifications

  • Two 22,500 lb. axles on 10′ spread
  • 16 1/2″ x 7″ ABS air brakes
  • Outboard 10-bolt hub and drum
  • 255/70R 22.5 16 ply tires
  • 22.5 hub piloted wheels
  • Air ride suspension
  • Cab controlled rear axle air dump valve
  • Manual front axle air dump valve (Tool box or side mounted)
  • 24″ kingpin setting
  • 10′ upper deck
  • 40′ lower deck with 40″ deck height
  • Two 2-speed landing legs
  • Spare tire mount
  • Hydraulic front vehicle lift
  • 3′ x 23″ front extenders
  • 3′ x 23″ rear extenders
  • 8′ floor recessed front ramps with spring assist
  • 14′ aluminum rear ramps with slide-in compartment
  • 1 1/8″ S/L apitong flooring
  • Stake pockets on 24″ centers
  • Pipe spacers between stake pockets
  • 5/16″ x 2″ rub rail
  • DOT bumper
  • Anti-sail mud flaps (front and rear axle)
  • Crossmembers on 16″ centers
  • Sealed wiring harness
  • Sealed beam lighting
  • Acid washed with rust inhibitor
  • Prime coated completely
  • Two coats polyurethane
